DAP Tips and Tricks

Discussion about Mediachance DAP

Re: DAP Tips and Tricks

Postby mhwarner » Fri Aug 03, 2012 10:58 pm

D&D,

Thanks for once again supplying us with tips and tricks. You did such a wonderful job in the old forum!

Just as a reminder, if anyone has DAP x64, you can correct perspective using the tool supplied with the program under the "plug-in" menu item called "Perspective Correction".
mhwarner

Posts: 842
Joined: Fri Oct 22, 2010 2:19 pm
Location: Arizona, US

Re: DAP Tips and Tricks

Postby Qabno » Sat Oct 20, 2012 9:53 am

Color your picture as regular.
Open your artwork in FotoSketcher and choose Painting
You can also add a fabric structure together or individually.
counting scales
Qabno

Posts: 5
Joined: Fri Oct 19, 2012 11:09 am

Re: DAP Tips and Tricks

Postby amziecat » Wed Nov 14, 2012 11:04 pm

Anyone know how to get the templates for HD 64 bit AOP's..or make them ..Purchased the program and want to tinker.HMM..Thanks Amzie
amziecat

Posts: 18
Joined: Tue Dec 07, 2010 10:49 pm

Re: DAP Tips and Tricks

Postby lylejk » Wed Nov 14, 2012 11:27 pm

In order to create a template (old or new) you need 2 jpegs (image and mask). It's the size that will tell DAP if it's an old or new template I believe. Have to admit, I've never created a new template yet in order to keep my AOPs the most compatible, but the process should be the same. The only extra thing you need to do is run DAP as administration (right click your DAP short-cut and run as Aministrator option) for Win7 or Vista). Note, you can't create or use 64-bit DAP AOPs unless you have a 64-bit OS, but assuming you knew this already. :)
lylejk

Posts: 695
Joined: Fri Oct 22, 2010 10:56 am

Re: DAP Tips and Tricks

Postby Rocambole » Thu Nov 15, 2012 3:53 am

HD templates are 6000 x 6000 pixels instead of 3000 x 3000 pixels.
Rocambole

Posts: 605
Joined: Fri Oct 22, 2010 4:06 pm
Location: Oslo, Norway

Re: DAP Tips and Tricks

Postby LigH » Thu Nov 15, 2012 4:16 am

I wish I could divide templates into more than 10×10=100 tiles. This would give styles a better variety. But DAP 2.5.5 (32-bit) definitely supports at most 100 objects.
#MediaChances — a deviantArtist group
LigH

Posts: 841
Joined: Thu Nov 10, 2011 9:47 am

Re: DAP Tips and Tricks

Postby lylejk » Sat Nov 17, 2012 7:40 pm

LigH wrote:I wish I could divide templates into more than 10×10=100 tiles. This would give styles a better variety. But DAP 2.5.5 (32-bit) definitely supports at most 100 objects.


I created a custom XCF (GIMP) file with a 10X10 grid guides and then place the brushs (well objects for my case) within each of the blocks; see attached for screenshot of my XCF template).
Attachments
lylejk

Posts: 695
Joined: Fri Oct 22, 2010 10:56 am

Re: DAP Tips and Tricks

Postby LigH » Thu Dec 06, 2012 9:49 am

@ lylejk:

Well, yes, it is rather easy to divide the image into a 10×10 grid. But I wish I could tell DAP to use e.g. a 20×20 grid instead, which would give me 400 instead of only 100 brush shape and color combinations. Unfortunately, I can't set up DAP to use 400 objects.
__

Now for something completely different:

My guide to really thick paint

DAP offers a feature "Thick paint" in the "Advanced" painting style tab. This will gradually cover the canvas texture. But it does not simulate a relief according to the paint thickness. We will have to apply that manually in a painting program, using an "Emboss" kind of filter. But there are several quirks...

An embossing algorithm uses the brightness as "height" information; therefore, the disadvantage of using the image itself as base for a relief is: The brighter the color, the "higher" the relief. The result will not always look as desired. Dark areas would appear inset, bright areas outset instead.

Fortunately, DAP can help us, delivering the required information. The thickness map offers you just what you need: The more often and more opaque DAP paints over a specific area, the brighter the thickness map gets, and this is the advantage in converting it to a relief overlay.

Most more or less modern image editors (Photoshop, Paint Shop Pro, GIMP, etc.) are able to work with several layers and different blending modes, e.g. those which apply brightness changes to the lower layers, according to the own layer's brightness, like "Soft light" and "Hard light". The content of such a layer should be 50% gray (#808080) where no change is expected, anything brighter or darker will change the brightness of the underlying image.

Let's take "Camille" as example template, it has the "Thick paint" attribute enabled, so thicker paint will tend to cover the canvas structure, which adds to the impression of paint thickness.

The general workflow is rather brief:
  • When the painting process finished, save the image, and immediately also execute "File » Special » Save Paint Thickness map..."
  • Open the image in a paint tool which supports layers, and put the thickness map in a layer above
  • Apply an Emboss filter on this layer
  • Set the layer mode to "Soft light" or "Hard light", and adjust its opacity.
Now the quirks...

Do not use the one in the "Texture Effects" submenu of PSP9. It is both too simple and confusing, the result appears like "light from the left bottom", although people with a latin writing system are more used to "light from the left top" in 3D relief effects, based on their usual reading direction.

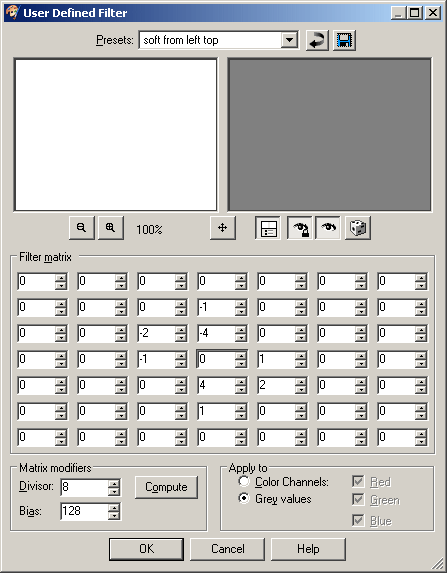

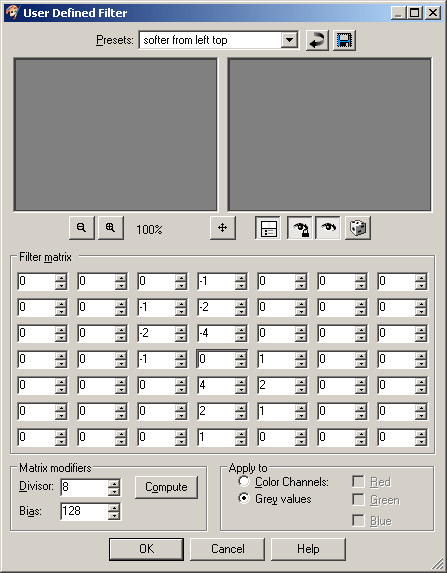

I would recommend using the "User Defined Filter" dialog with a convolution matrix. It allows a softer averaging of the neighborhood of each pixel, as well as using a preferred "light direction", by carefully choosing the convolution parameters.


Furthermore, you may like to tweak the thickness map before and after embossing it. Try to raise its Gamma value before embossing, possibly also a slight blur. Try a "Histogram Stretch" (or a raised Contrast) afterwards, possibly also a slight blur. Try either "Soft light" or "Hard light" as layer mode. Adjust the layer opacity. Or tweak the AOP settings to give the thickness map more substance (make it paint more strokes).

Base image

Thickness map (gamma 1.5, gaussian blur 1.0)

Thickness map, embossed

Final image, embossed thickness map layered in Hard Light mode
#MediaChances — a deviantArtist group
LigH

Posts: 841
Joined: Thu Nov 10, 2011 9:47 am

Re: DAP Tips and Tricks

Postby lcanter » Thu Dec 06, 2012 10:48 pm

Thanks - very useful and helpful!!
lcanter

Posts: 141
Joined: Thu Apr 12, 2012 2:24 pm

Re: DAP Tips and Tricks

Postby Rachel » Sun Dec 09, 2012 7:22 pm

Thanks, LigH!
Rachel

Posts: 1920
Joined: Fri Nov 19, 2010 3:56 pm
Location: Oak Ridge, North Carolina
